San Mateo County "Old County" Courthouse Seismic Retrofit |
|
|
|

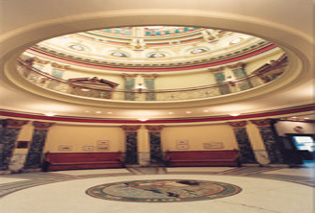

Survivor of two major earthquakes (1906 and 1989) the Old Courthouse building
(Circa 1902) embraces several distinctive features, including the largest stained glass dome on a public
building on the West Coast, elaborately decorated art deco courtrooms and un-reinforced masonry walls with
sandstone veneer.
This historic structure sustained nearly $3 million in damage during the Loma Prieta earthquake. Shortly
thereafter Crosby Group was retained to design and implement the extensive seismic retrofit required to
restore the building to full public use. Challenges included protecting the architectural features and
allowing some limited use of the building while performing the retrofit.
Due to restricted access to the walls from the outside of the building, the unreinforced masonry was
structurally enhanced from within, using composite fiber reinforced polymer (FRP). To protect historic
tiled floors, slab-to-wall shear transfer was strengthened with FRP installed from the underside of the
slab. In addition, an innovative steel transition piece was implemented to provide force transfer. This
new composite system was successfully tested at UC San Diego prior to implementation. This retrofit design
method resulted in substantial savings to the County (over a comparable conventional approach) and greatly
reduced disruption from demolition.
LOCATION: Redwood City, CA
CONSTRUCTION COST: $3 Million
COMPLETED: 1997
OWNER: San Mateo County
HIGHLIGHTS:
Prime Professional
Historic Structure
FRP Composite Design
|
|
|
|
|
